Thin Film Deposition Services — Sputtering Solutions

Sputtering is a physical vapor deposition (PVD) method where atoms are ejected from a solid target material by bombardment with energetic ions, typically in a vacuum chamber. At Providence Metallizing, we use magnetron sputtering—a highly efficient variant that employs magnetic fields to confine plasma near the target surface, increasing deposition rates and coating uniformity. This process allows us to deposit thin, uniform metal films (copper, stainless steel, aluminum) onto engineered plastic substrates like Ultem, Polycarbonate, Nylon, and LCP. Unlike thermal evaporation, sputtering provides superior adhesion, precise thickness control, and the ability to coat complex geometries, making it ideal for EMI-RFI shielding, decorative finishes, and functional coatings in electronic and medical device applications.

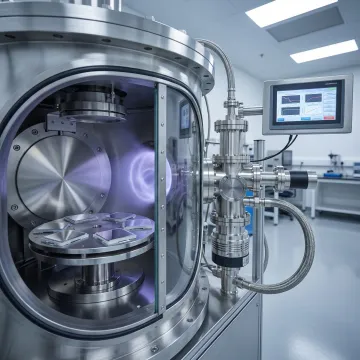

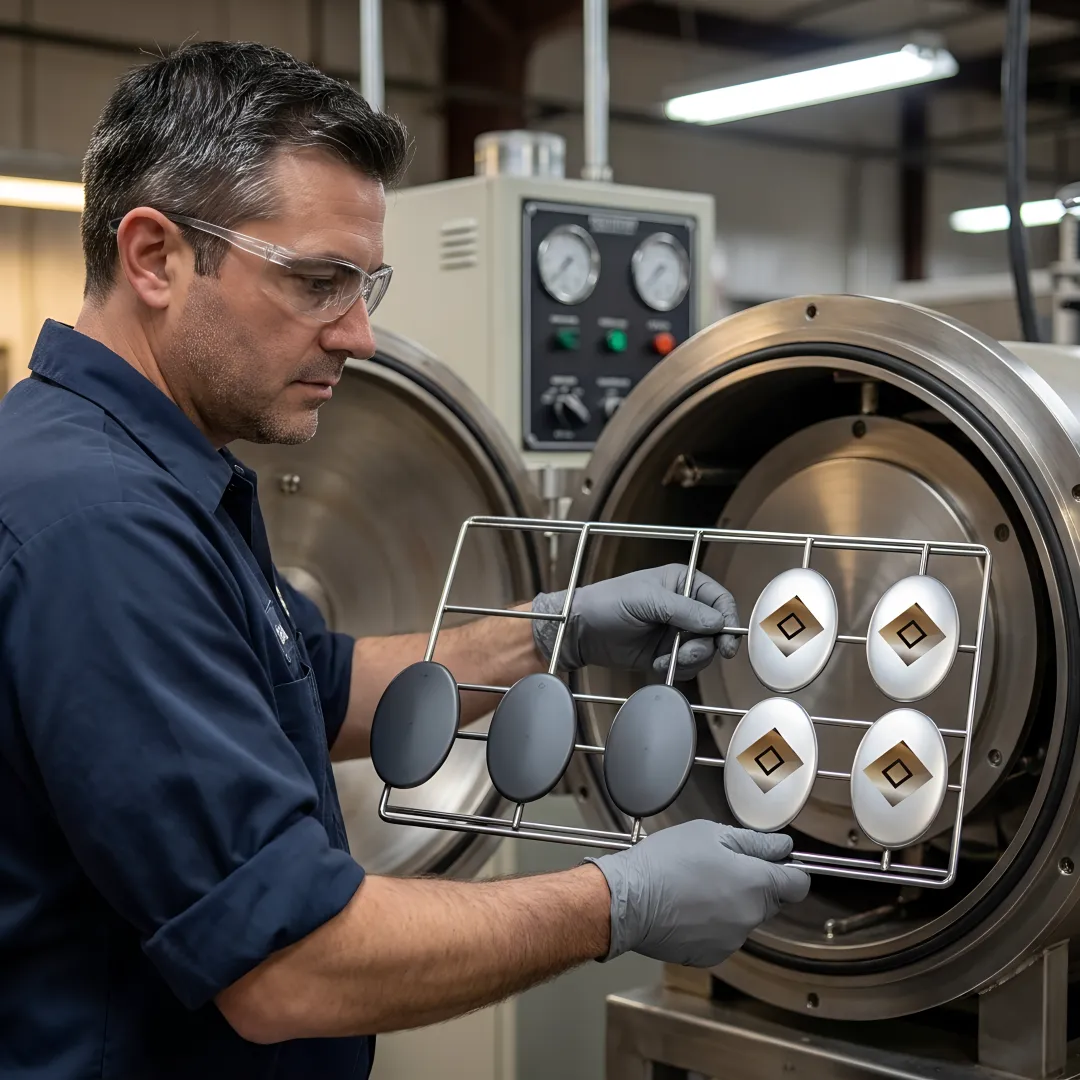

Sputter coating at Providence Metallizing begins with thorough substrate preparation, including plasma treatment for adhesion promotion on difficult materials like polycarbonate. Parts are loaded into our vacuum chambers and the environment is evacuated to remove contaminants. An inert gas (typically argon) is introduced, and a high voltage is applied to create plasma. Positively charged ions bombard the metal target, ejecting atoms that travel through the vacuum and deposit uniformly onto the substrate surface. Our magnetron sputtering systems use magnetic fields to increase efficiency and deposition rates. Process parameters—pressure, power, substrate temperature, and deposition time—are precisely controlled to achieve the desired film thickness, adhesion, and functional properties. For reactive coatings like TiN or ZrN, reactive gases are introduced during deposition.

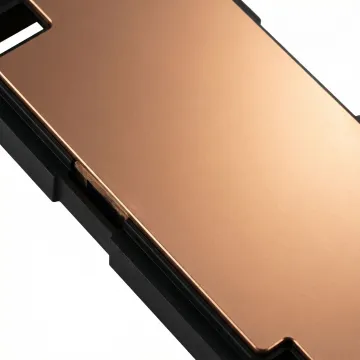

Sputter deposition serves critical functions across multiple industries. In electronics, we apply sputtered copper, aluminum, and stainless steel coatings to molded plastic housings for EMI-RFI (electromagnetic interference/radio frequency interference) shielding—essential for protecting sensitive circuits in smartphones, medical devices, and automotive electronics. Reactive sputtering produces ultra-hard, wear-resistant coatings like Titanium Nitride (TiN), Zirconium Nitride (ZrN), and Titanium Carbo Nitride (TICN) for tools, industrial components, and functional parts requiring extreme durability. We also use sputtering for decorative metallic finishes on engineered plastics where traditional plating isn't feasible, and for optical coatings requiring precise thickness control. Our capability extends to difficult substrates including Ultem, Nylon, and LCP—materials common in medical, aerospace, and high-performance applications.

Providence Metallizing specializes in sputtering a wide range of metals and compounds onto engineered plastic and metal substrates. Our primary sputtered metals include copper, stainless steel, and aluminum—chosen for their excellent conductivity and EMI-RFI shielding properties. We also perform reactive sputtering to create compound coatings: Titanium Nitride (TiN) for gold-colored, ultra-hard surfaces; Zirconium Nitride (ZrN) for corrosion resistance; and Titanium Carbo Nitride (TICN) for enhanced wear resistance. We have proven expertise coating engineering-grade plastics such as Ultem (polyetherimide), Polycarbonate, Nylon, and LCP (liquid crystal polymer)—materials that are notoriously difficult to coat but critical in medical, electronic, and automotive applications. Our plasma treatment process ensures flawless adhesion even on low-surface-energy materials.

Sputtered coatings from Providence Metallizing deliver exceptional durability due to their superior adhesion and dense microstructure. Our magnetron sputtering process creates atomic-level bonding between the coating and substrate—far stronger than mechanically or chemically deposited finishes. Reactive sputtered coatings like TiN, ZrN, and TICN exhibit extreme hardness (often exceeding 2000 HV) and outstanding wear resistance, making them ideal for functional parts subjected to abrasion, friction, and environmental exposure. For EMI-RFI shielding applications, our sputtered metal films maintain conductivity and integrity through thermal cycling, humidity exposure, and mechanical stress. When combined with our proprietary plasma treatment for adhesion promotion and optional UV topcoats for chemical resistance, sputtered coatings withstand the demands of electronic, medical, and industrial environments while maintaining performance specifications throughout the product lifecycle.

Providence Metallizing is known for exceptionally fast turnaround times, often completing projects in half the industry standard lead times. For prototype and sampling work, our in-house custom tooling design and build capabilities allow us to move from initial samples to production-ready parts rapidly—typically within 2-3 weeks depending on complexity. Production runs benefit from our 200,000+ sq.ft. facility operating on a 24-5 schedule, enabling us to process high volumes efficiently. We can handle over a million parts per week across more than 20 different jobs simultaneously. Standard production turnarounds range from 1-3 weeks, while rush orders can often be accommodated within days. Our capacity to run trailer loads of material daily, combined with our flexible high-volume manufacturing systems, means we can scale quickly to meet urgent deadlines without compromising our jewelry-level quality standards.

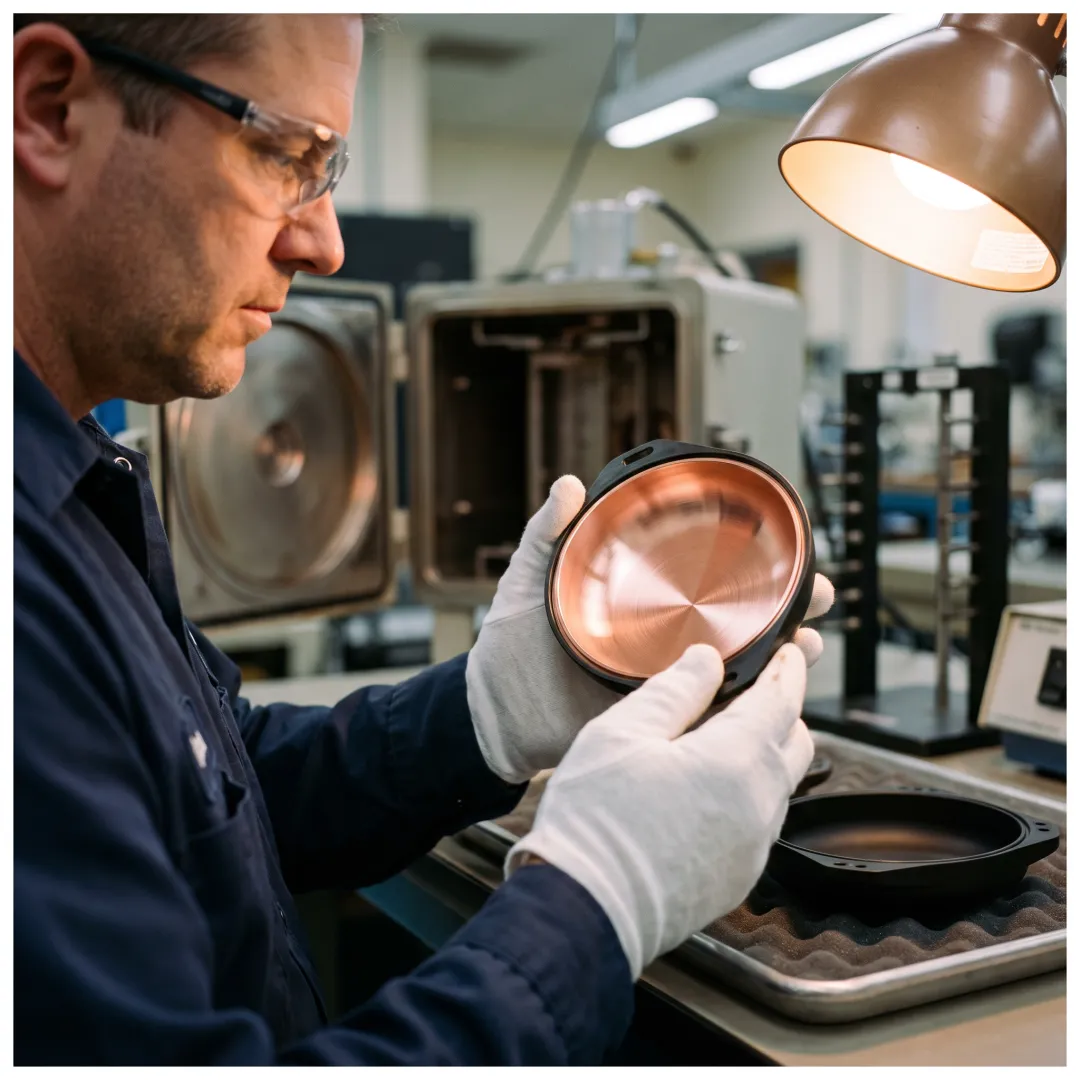

Yes, Providence Metallizing offers free sampling services for most customers and applications—a cornerstone of our customer service approach. Our sampling process begins with a technical consultation to understand your specific requirements: substrate material, desired coating properties, performance specifications, and end-use environment. We then produce initial samples using our production equipment to ensure that what you evaluate is what you'll receive at scale. Samples can be tested for adhesion (cross-hatch, tape pull), thickness, conductivity (for EMI-RFI applications), hardness (for wear-resistant coatings), and environmental resistance. Our in-house custom tooling division allows us to create specialized fixtures for your parts quickly, streamlining the sampling-to-production transition. We encourage iterative sampling to optimize coating parameters and ensure your specifications are met before committing to full production runs, minimizing risk and ensuring first-time success.

Absolutely. Providence Metallizing excels at multi-step finishing processes that combine sputtering with complementary techniques to achieve complex functional and aesthetic requirements. Common combinations include: plasma treatment before sputtering to promote adhesion on difficult substrates; sputtering followed by UV topcoating for enhanced chemical and scratch resistance; sputtering combined with electroplating to achieve specific color or functional layering; and sputtering integrated with precision laser removal for detailed patterns or selective coating areas. Our 60+ years of finishing expertise across metallizing, plating, polishing, and coating disciplines allows us to engineer complete finishing solutions rather than single-process services. For example, we routinely produce parts with sputtered EMI-RFI shielding on interior surfaces combined with decorative vacuum metallizing or plating on exterior surfaces—all within our facility to ensure quality control, faster turnaround, and seamless coordination between process steps.
