Titanium Nitride (TiN) Coating Solutions

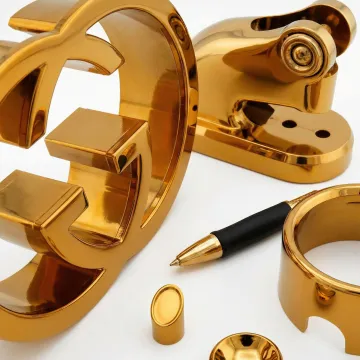

Titanium Nitride coating is an advanced ceramic coating applied through Physical Vapor Deposition (PVD) that creates an extremely hard, wear-resistant surface with a distinctive gold color. Key benefits include exceptional hardness (up to 2,300 Vickers), superior wear and abrasion resistance, reduced friction coefficients, excellent corrosion protection, and the ability to extend tool and component lifespan by 3-10 times compared to uncoated parts. TiN maintains performance at elevated temperatures and provides biocompatible properties for medical applications.

TiN coating serves critical functions across multiple sectors: cutting tools and machine tooling (drill bits, end mills, inserts), medical devices (surgical instruments, implants), electronic components (EMI-RFI shielding, connector pins), automotive parts (engine components, transmission gears), hardware and plumbing fixtures (decorative and functional finishes), and industrial equipment (dies, molds, wear parts). Any application requiring enhanced surface hardness, wear resistance, or reduced friction benefits from TiN coating technology.

Our advanced PVD systems can coat a wide range of materials including tool steels, stainless steel, aluminum alloys, titanium, brass, and engineered plastics such as Ultem, polycarbonate, nylon, and LCP. We've developed specialized pretreatment processes enabling successful TiN deposition on challenging substrates where conventional coating methods fail. Each material requires specific surface preparation and deposition parameters to ensure optimal adhesion and performance, which our experienced engineers determine through initial sampling.

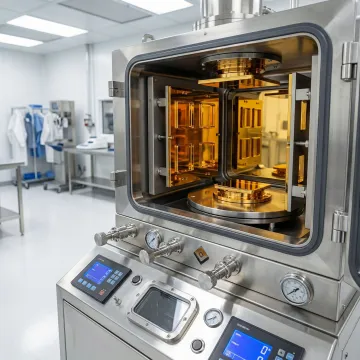

Physical Vapor Deposition occurs in a high-vacuum chamber where titanium metal is vaporized through methods like magnetron sputtering or reactive arc deposition. The vaporized titanium reacts with nitrogen gas to form titanium nitride, which deposits atom-by-atom onto the substrate surface. This creates an extremely dense, uniform coating typically 1-5 microns thick. The process operates at controlled temperatures (typically 150-500°C depending on substrate) ensuring dimensional stability and excellent adhesion without distorting precision components.

Our in-house custom tooling design and build capability enables us to move parts from initial sampling to full production in half the typical industry lead times. Standard production runs typically require 5-10 business days depending on coating specifications, part complexity, and volume. Rush services are available for critical applications. For new projects, we offer free sampling services to validate coating performance and establish process parameters before committing to production volumes.

Each coating serves specific performance requirements: TiN (gold color) offers excellent general-purpose wear resistance and is most economical; ZrN (brass-gold) provides superior corrosion resistance and decorative appearance; TICN (gray) delivers maximum hardness and lowest friction for extreme wear applications. Our engineers evaluate your specific operating conditions—contact pressure, sliding velocity, temperature, corrosive environment—to recommend the optimal coating. Many applications benefit from multilayer or gradient coating architectures combining multiple materials for enhanced performance.

Providence Metallizing maintains ROHS compliance for all coating processes and holds approved supplier status with global industry leaders including Estée Lauder, L'Oreal, Avon, and Elizabeth Arden. Our quality systems ensure consistent coating thickness, adhesion, and appearance through rigorous in-process monitoring and final inspection. We provide complete documentation including coating specifications, thickness measurements, and adhesion test results. Our 70+ years of finishing experience and continuous process improvement ensure we meet the most demanding quality requirements.

Yes, our advanced PVD technology excels at coating complex three-dimensional geometries, internal surfaces, and precision miniature components. We've developed specialized fixturing and rotating systems ensuring uniform coating coverage on intricate parts. Our experience includes medical micro-instruments, precision electronic connectors, complex die-cast components, and machined parts with tight tolerances. We process parts ranging from submillimeter-scale components to larger assemblies, maintaining coating uniformity and dimensional precision throughout.
